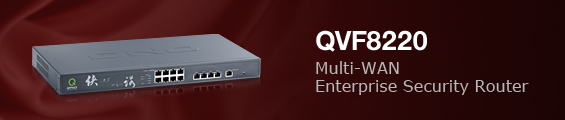

QVF8220 Multi-WAN Enterprise Security Router

Overview | Specifications | Typical Deployment | SSL VPN Deployment

QVF8220	Business/Enterprise Headquarter

Overview

QVF8220 is a professional security appliance designed specifically for medium to large enterprises to establish business networks with robust security/ease of use VPN connections. It contains 4 Gigabit WAN ports and 8 Gigabit Ethernet LAN ports to deliver high interface flexibility and scalability for Internet access and your private network. Moreover, this device features powerful accelerating mechanism for network traffic and come up the ten times performance, up to 650Mbps at 64 byte packet size, than other competitors. With comprehensive manageable functions combining firewall, VPN, QoS, NAT, and powerful traffic management, this router brings an excellent all-in-one solution to enterprise businesses, service providers, call centers, and data centers. Most of all, this appliance equipped SSL VPN provides extremely easy N setup and plug-and-play convenience to mobile users.

Featuring up to 4 Gigabit WAN ports, QVF8220 can simultaneously connect four different broadband services, so in the unlikely event that one unit fails; the remaining connections will continuously provide connectivity to the internet and remote networks. The device also supports Intelligent Balancer (Auto Mode) and User's specify mode for multi-WAN traffic management, as well as Quality of Service (QoS) for network administers to control both guarantee/minimum bandwidth and limit maximum bandwidth or to set priority for different services. Moreover, this router offers a unique DMZ port and it allows you to setup public server without exposing your internal network.

More than just a NAT router, QVF8220 provides a build-in advanced firewall protecting enterprise networks from various malicious attacks. The product uses stateful packet inspection (SPI) to examine all data packets passage against a set of custom security policies. It also built with an automatic protection to detect and block Denial of service (DoS) attacks such as SYN flooding, IP Spoofing, LAND, Ping of Death and etc. NAT functionality with firewall conceals network address avoiding the disclosure as public information and also provides a solution for IP address depletion problem. The product also has the reverse NAT capabilities that enable users to host various internet services in the private IP address space, such as web servers, e-mail servers and etc.

As the Internet access is wide available this day, more and more mobile workers need a fast and easy way to get data from office while they are on the road and may not be able to use their own computers. The SSL VPN exactly satisfies this need without requiring client side to install software. Through the common SSL enabled browsers, remote workers can easily start the SSL VPN connections with headquarters. No installation, no configurations, and no maintenance effort are required, as long as end user knows how to use a browser and get the ID/Password from network manager for SSL access. Branches, personnel on business trips, or partners anywhere can access information within a firm through the Internet. Most of all, Qno's SSL VPN has the most simple and straightforward image interface and it does not require too much technical guidance before a user can use the system. This can extremely eliminate the burden of web administrators and speeds up total implement of SSL by corporations.

Qno SSL VPN empowers non-savvy users to build up secure data transmission tunnel basing on the SSL protocol with unlikely broken data encryption mechanism. Establishing by common SSL enabled web browser, the SSL VPN tunnel only carries the data seen on the screen without saving all data base on client PC. It gives the extremely high levels of security for mobile workers who may use public PC to access confidential documents in headquarter. Beside the user identity verification, network manager can control the availability of SSL tunnel and limit the usage of applications for individual user by setting the expiration date, connection idle time, and detail access rules to avoid the confidential data abuse. Qno SSL VPN also provides the ability to clear various Web temporary files and cookies after signing out, so that no data will be stolen by sneakers.

SSL VPN allows network administrators to set strict rules of available applications for each SSL tunnel user. Qno SSL VPN divides the supported applications as Network Service, Terminal Service, My Desktop, My Network Place, and Virtual Passage and all these applications can be easily configured in one setting page to be ready to access. This can quickly change the C/S applications into B/S topology or remote control, as well as add on the protection of secure data transmission. Moreover, through SSL enabled web browser to access the center side application, SSL tunnel only transmits the data seen on screen; bandwidth needs are extremely small, and this resolves the problem of slow access and response of C/S frameworks.

Most SSL VPN devices are difficult to configure as it needs a lot of steps to complete a single SSL tunnel user rule for security reason and the configuration interface is unfriendly. But Qno's SSL VPN is easy to setup and keep the same security as SSL VPN should have. Qno SSL VPN implements the group management concept and simplified the SSL tunnel rule setting in a page within the straightforward setup procedures. Besides, the network administrator can quickly apply the default user groups to configuration templates to saving the detail configuration steps. Qno SSL VPN supports multiple verification servers, including local user accounts, RADIUS, Active Directory, LDAP, NT Domain. Corporate network administrators can use the most appropriate, convenient, or existing verification models to quickly setup the authentication process.

This security router's build-in core management tool provides a highly flexible, effective, and easy to use management environment for the network administrator. It comes with a comprehensive web-based management interface for more flexible and easily configured in different web browser. The SysLog and traffic statistic information allow network administrator to easily control and monitor the end users and then take the proper action to efficiently utilize network resource.

Specifications

Back to top

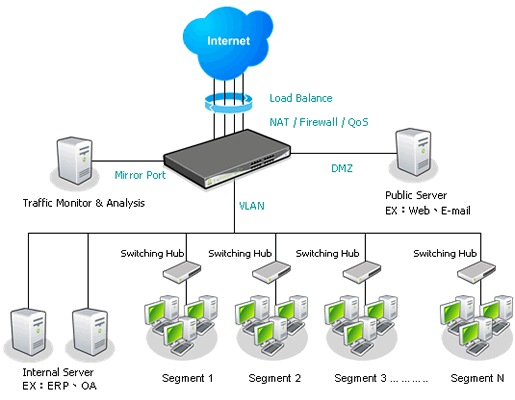

Typical Deployment

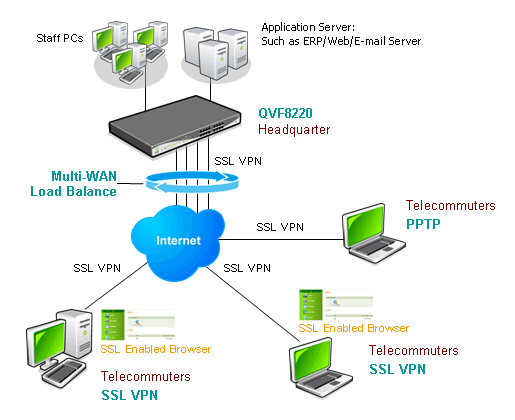

SSL VPN Deployment
